15mm MDF Magnesium Board 105mm Thickness Up to 6M Height Acoustic Partition Wall Movable Partition Wall

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD 90-110 Per Square Meter
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

ISO9001 SGS

Produk:

Dinding partisi lipat akustik bergerak

Aplikasi:

Rumah Sakit, Hotel, Laboratorium, Restoran, Ruang Rapat, Shool

Bahan:

Bingkai aluminium aluminium 6061-T6+ lunas tabung persegi galvanis

Opsi finishing:

Kain, lapisan, mural, dan bahkan bahan yang disediakan pelanggan

Papan dasar:

Papan magnesium MDF 15mm, kayu lapis, bahan yang disediakan pelanggan

Isolasi suara:

56dB

Fungsi:

Dioperasikan, lipat, menangguhkan, membaginya, kedap suara

Ketebalan:

105mm

Desain:

Gaya khusus

Ukuran:

Kustomisasi (tinggi: hingga 6m, lebar per panel: hingga 1,2m)

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

15mm MDF Magnesium Board Acoustic Partition Wall

105mm Thickness Movable Partition Wall

Up to 6M Height Soundproof Partition

Deskripsi Produk

Hotel Fabric Movable Acoustic Partition Walls

AE Partition: Redefining Spaces with Smart, Soundproof Solutions

Transform environments into havens of privacy and acoustic perfection. AE Partition delivers premium soundproof partitions and passageway doors engineered for modern living, working, and hospitality spaces worldwide—trusted from the UK and Europe to the US and beyond.

Why AE Partition Stands Apart

Trusted Expertise: A legacy of executing large-scale commercial and institutional projects flawlessly.
Affordable Innovation: Superior quality at competitive rates, backed by meticulous quality assurance.
Bespoke Designs: Tailor-made solutions to align with your aesthetic and functional vision.
Safety First: Proactive risk mitigation through expert pre-production evaluations.
24/7 Global Support: Instant quotes and dedicated English-speaking consultants at your service.

Engineered for Excellence

Smooth, Silent Motion

Dupont POM Rollers: Ultra-durable, low-friction performance.
304 Stainless Steel Rollers: Precision-crafted for safety and longevity.
Patented Wheel System: Effortless glide with flawless alignment.

Acoustic Mastery & Strength

Multi-Thickness Panels (68mm/89mm/105mm): Balance soundproofing and structural needs.
Custom Finishes: Blend functionality with style—acoustic or decorative.
Military-Grade Build: 6061-T6 aluminum and reinforced Q235 steel cores.
Perfect Seals: 800N jack-lift mechanisms and 40N/m magnetic gaskets for silent, airtight spaces.

Global Quality, Local Commitment

Internationally Certified: Adherence to top-tier manufacturing standards.
Seamless Partnership: Transparent collaboration from concept to installation, delivered on time.

Your Vision. Our Precision. Unite innovation, privacy, and resilience in every square meter. Let AE Partition elevate your space—connect with us now and experience the future of intelligent design.

Specifications

Series	Element thickness (mm)	Element width* (min./max. mm)	Clear height* (min./max. mm)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

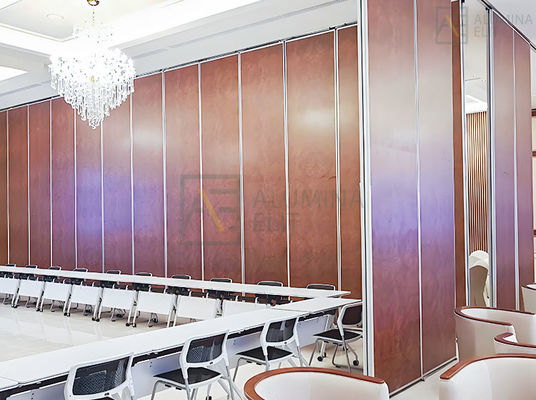

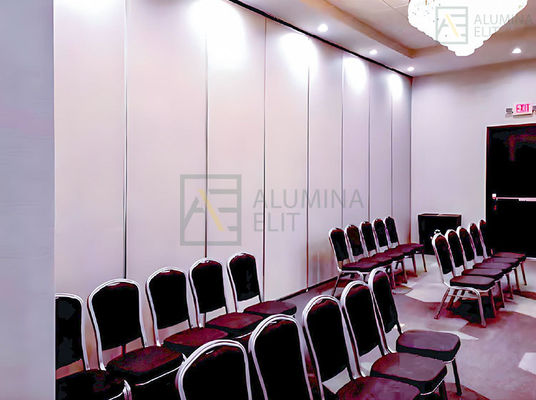

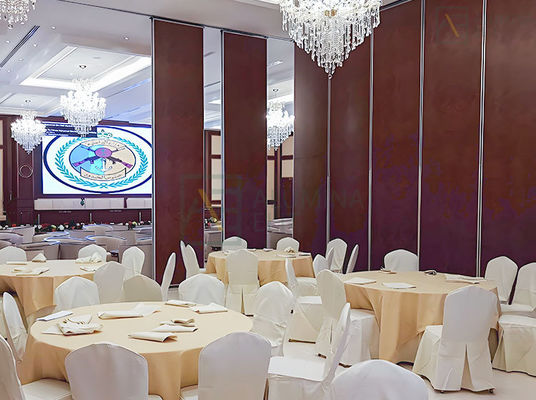

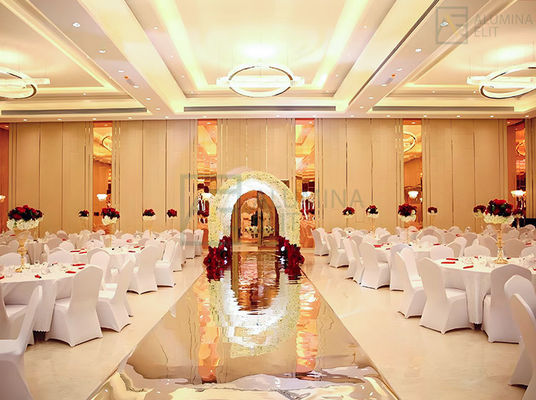

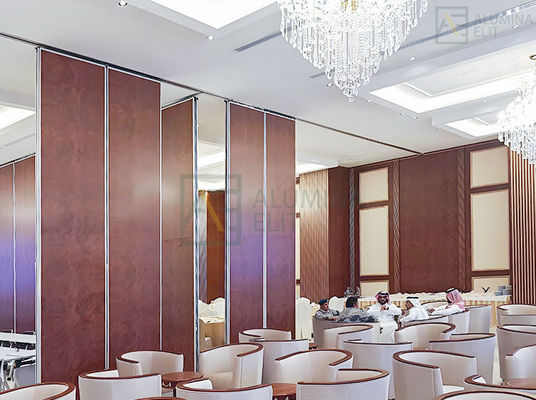

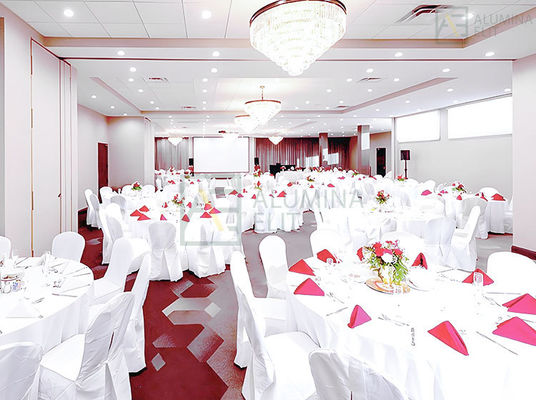

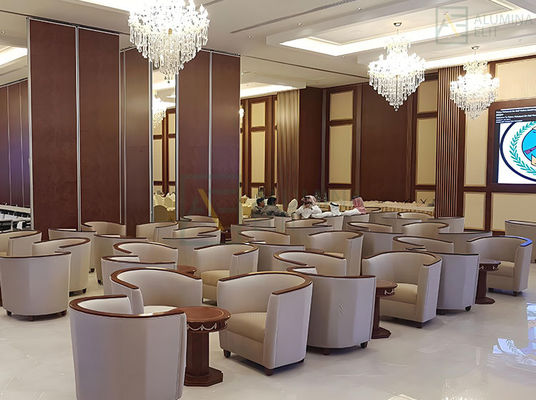

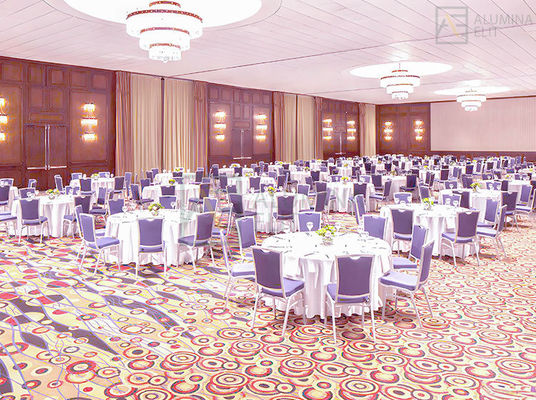

Project Gallery
