Fireproof Acoustic Partition Wall with 52 dB Sound Insulation and 6061-T6 Profile for Conference Rooms

Nama merek:	AE
Nomor Model:	AE85
Moq:	10 meter persegi
harga:	USD 80-108 Per Square Meter
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

ISO9001 SGS

Model:

Pembagi Dinding Partisi

Kepatuhan:

Restoran, Ruang Pertemuan

Bahan panel:

Bahan yang disediakan pelanggan

Tinggi:

Hingga 6m

Isolasi suara:

Maksimal 52 dB

Ketebalan dinding:

89cm

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

Fireproof Acoustic Partition Wall

52 dB Sound Insulation Partition Wall

6061-T6 Profile Partition Wall

Deskripsi Produk

Conference Room Acoustic Sliding Wall Fireproofing Operable Partition Wall Dividers

Conference Room Folding Movable Partition Acoustic Sliding Walls Fireproofing Operable Partition Dividers

AE Partition has completed projects in the UK, Germany, Belgium, Tatarstan, US and other locations worldwide. Our intelligent solutions for flexible space utilization feature sound insulated or transparent movable walls with flexible partitions that enable efficient space configuration for virtually any requirement.

Advantages

Extensive experience working with demanding clients
Precise delivery time control for all orders
Dedicated design team for new product and solution development
Product performance certified by SGS & ILAC-MRA

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape design for smooth partition operation

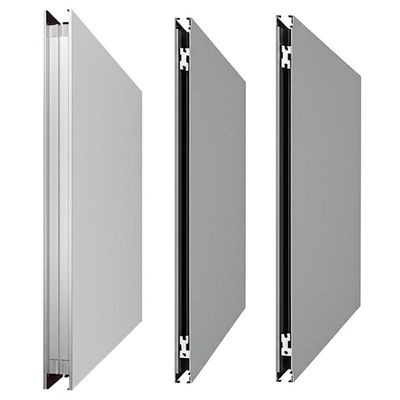

Panel Options & Features

Thickness: 68mm, 89mm & 105mm options
Wide selection of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for maximum durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology:
Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
