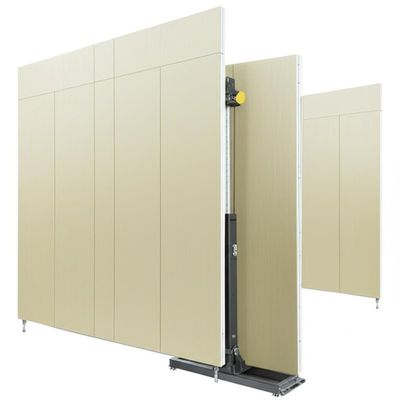

OEM ODM Sound Insulation Partition Wall with 800N Jack Lifting Mechanism and 40N/m Magnetic Attraction in Melamine Finish

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD 80-108 Per Square Meter
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS

Nama:

Dinding Partisi Isolasi Suara

Isolasi suara:

Max 56db

Fitur:

Isolasi suara

Menyelesaikan:

Melamin

Opsi finishing:

Bahan yang disediakan pelanggan

Tinggi:

Hingga 18 juta

Desain:

OEM & ODM

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

800N Jack Lifting Mechanism Sound Insulation Partition Wall

40N/m Magnetic Attraction Movable Partition Wall

Melamine Finish Acoustic Partition Wall

Deskripsi Produk

Operable Sliding Acoustic Partition Wall For Classroom 105mm Thickness

AE Acoustic Partition Walls are ideal for projects requiring precise space delineation. Their flexibility and cost-effectiveness make them perfect for subdividing large rooms and enhancing space utilization. Common applications include:

Office environments and meeting rooms
Sports and leisure facilities
Educational institutions
Places of worship
Conference and function suites
Exhibition centers, banks, and restaurants

Key Features

Soundproof connection between elements with interlocking male/female trapezoidal vertical aluminum profiles
Integrated magnetic strip for additional friction connection
Easy element adjustment after installation
Maintenance-free extruded aluminum track system with heavy-duty ball bearing steel rollers
Customized support available

Roller Options & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape for easy operation

Panel Options & Features

Available thicknesses: 68mm, 89mm, 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width (min/max mm)	Clear Height (min/max mm)	Framed Construction	Panel Fixing	Element Interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Connection: Positive and frictional locking with convex-concave profile form, magnetic strip attraction force of 40 N/m
* Larger widths possible on application. Provisional details regarding element heights/widths require consultation with Design Department.
