6061-T6 Profile Q235 Steel Frame Acoustic Partition Wall with 304 Stainless Steel Roller

Name: 6061-T6 Profile Q235 Steel Frame Acoustic Partition Wall with 304 Stainless Steel Roller
Brand: FOSHAN AE PARTITION TECHNOLOGY LIMITED COMPANY
SKU: AE100
Price: 112.00 USD
Availability: InStock

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD90-135Per Square Meter
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS

Produk:

Sistem dinding partisi yang bergerak

Aplikasi:

Rumah sakit, Gedung perkantoran

Papan dasar:

Bahan yang disediakan pelanggan

Ukuran:

Kustomisasi (Tinggi: hingga 18M, Lebar per Panel: hingga 1,2M)

Desain:

OEM & ODM

Isolasi suara:

Max 56db

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

6061-T6 Profile Acoustic Partition Wall

Q235 Steel Frame Movable Partition Wall System

304 Stainless Steel Roller Soundproof Partition Wall

Deskripsi Produk

Affordable Soundproof Moveable Partition Wall System With Passageway Door

Discover our affordable soundproof movable partition wall systems featuring convenient passageway doors. Designed for flexibility and superior acoustic performance, these partitions provide easy access while maintaining excellent sound insulation in any space.

Tailored to your requirements, the AE100 Series offers versatile solutions for offices, classrooms, conference rooms, gymnasiums, and large event spaces. These fold-away partitions deliver exactly what you need for flexible space management.

Key Advantages

German Partition Technology - Global Professional Space Solutions
Smooth communication and fast response to construction issues
On-site inspections available
Extensive experience with major projects
Highly competitive pricing
Precise delivery time control
Comprehensive OEM & ODM services
Custom product specifications and value-engineered alternatives
Detailed submittal drawings provided

Roller Options & Features

Dupont POM rollers for smooth operation
304 stainless steel heavy duty rollers with safety device & CNC machining
Patented wheel surface and shape design for effortless movement

Panel Options & Features

Available thicknesses: 68mm, 89mm, and 105mm
Wide variety of acoustical and decorative finishes

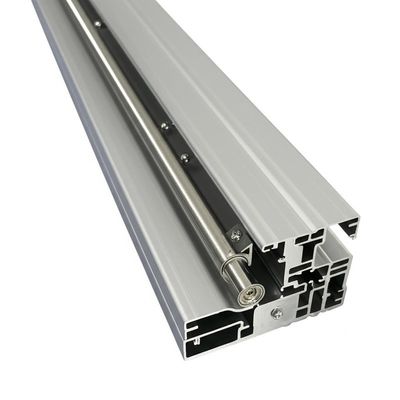

6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m attraction

Technical Specifications

Series	Element Thickness (mm)	Element Width (min/max in mm)	Clear Height (min/max in mm)	Construction	Panel Fixing	Element Interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value (Rw) determined per GB/T19889.3-2005: 52/56 dB

Connection System: Positive and frictional locking with convex-concave profile form, magnetic strip attraction force of 40 N/m

* Larger widths possible on application. Provisional details regarding element dimensions require consultation with our Design Department.
