Banquet Hall Acoustic Partition Wall with Magnetic Seal Concealed Panel Edge Profiles and Powered Operation Option

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD 80-108 Per Square Meter
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS

Nama Produk:

Tembok Pembagian Ruang Makan

Aplikasi:

Partisi Aula Perjamuan

Opsi finishing:

Bahan yang disediakan pelanggan

Tinggi:

Hingga 18 juta

Desain:

OEM & ODM

Isolasi suara:

Max 56db

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

Magnetic Seal Acoustic Partition Wall

Concealed Panel Edge Profiles Operable Partition Wall

Powered Operation Option Banquet Hall Partition Wall

Deskripsi Produk

OEM ODM Banquet Hall Partition Wall, Removable Operable Partition Wall For Hotel

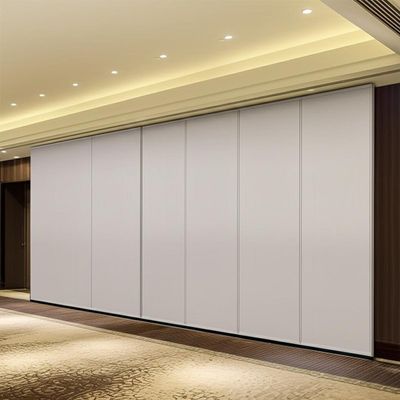

Transform your space effortlessly with our versatile acoustic partition walls. These innovative solutions enable you to convert two rooms into a single expansive area using a simple folding screen. Ideal for environments where floor space is valuable, our partitions allow a large meeting room to be divided into three smaller areas for daily use.

Key Features

Top hung system without the need for a floor track
Retractable top and bottom seals ensure effortless movement of panels
Concealed or exposed panel edge profiles
Numerous panel stacking options for complete flexibility
Extensive range of surface finishes available
Easy construction and transportation
Various levels of sound reduction available
Combines elegance with robust construction
Customization options available

Roller Options

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Unique and patented wheel surface and shape for easy operation

Panel Options

Thickness: 68mm, 89mm & 105mm
Wide variety of acoustical and decorative finishes available
6061-T6 profile and inside Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with power of 800N
Magnetic seal in concave & convex profile has magnetic attraction of 40N/m

Technical Specifications

Series	Element thickness (mm)	Element width (min/max mm)	Clear height (min/max mm)	Construction	Panel fixing
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
