Acoustic Fire Resistance Movable Partition Wall with MDF Board and Aluminium-Steel Construction

Nama merek:	AE
Nomor Model:	Seri 65
Moq:	10 meter persegi
harga:	USD 79-108 per square meter
Ketentuan Pembayaran:	L/C,T/T,Western Union
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS CANS

Seri:

Tembok Pembagian yang Bisa Dipindahkan

Bahan Panel:

Dewan MDF

Aplikasi:

Sekolah, gedung perkantoran

Ketebalan:

68cm

Peringkat STC:

42-56dB

Ukuran:

Kustomisasi (Tinggi: hingga 4,5M, Lebar per Panel: hingga 1,2M)

Nama:

Tembok Pembagian yang Bisa Dipindahkan

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

MDF Board Movable Partition Wall

Aluminium-Steel Construction Movable Partition Wall

Freely Oscillating Movable Partition Wall

Deskripsi Produk

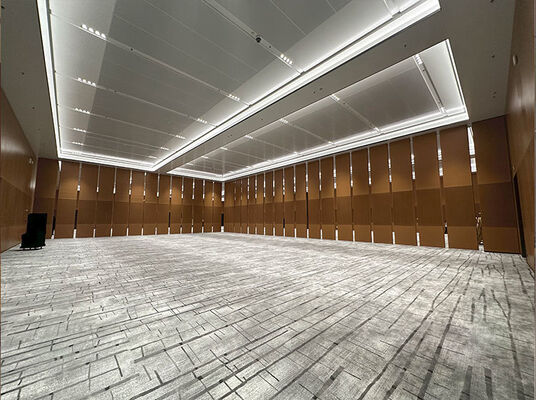

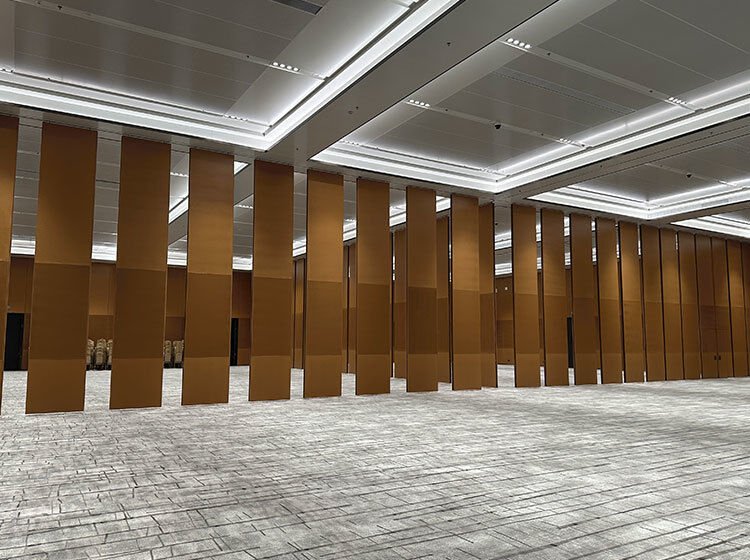

Acoustic Movable Partition Wall with Fire Resistance for Office Building

AE Partition provides smart solutions for efficient room management worldwide. We specialize in planning, designing, and installing movable partition wall systems while ensuring their long-term durability and performance through comprehensive services.

Quality Service

Quick turnaround on free quotes (1-6 business days depending on project size)
Product specifications and value-engineered alternatives
Provide submittal drawings
On time deliveries
Fast response and flexibility to construction related issues

Roller Option & Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Unique and patented wheel surface and shape for easy operation

Technical Specifications

Series	Element thickness (mm)	Element width* (min./max. mm)	Clear height* (min./max. mm)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology:
Weighted sound reduction value (Rw): 52/56 dB (determined per GB/T19889.3-2005)
Positive and frictional locking of vertical element connections: Convex-concave profile form with magnetic strip force of attraction (40 N/m)

* Larger widths possible on application. Provisional details regarding element heights/widths require consultation with our Design Department.
