Exhibition Space Solution for Xi'an Art Museum | Soundproof Movable Partition with 800N Sealing & 40N/m Magnetism, Enhancing Visiting Experience

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD 90-125 Per Square Meter
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

ISO9001 SGS

Nama Produk:

Dinding bergerak akustik

Bahan bingkai:

Paduan Aluminium

Kepatuhan:

Ruang pertemuan, sekolah

Ketebalan:

105cm

Peringkat STC:

42-56dB

Ukuran:

Kustomisasi (Tinggi: hingga 18M, Lebar per Panel: hingga 1,2M)

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

STC Rating 42-56dB Movable Partition Wall

105CM Thickness Acoustic Movable Wall

6061-T6 Profile Room Divider

Deskripsi Produk

Acoustic Movable Partition Wall Divider For Meeting Room / School

High Quality Movable Partition Wall Dividing For Meeting Room

Our meeting room partition walls provide an efficient space management solution with top-hung design that eliminates floor tracks for easy installation and operation. Designed for conference settings, these soundproof partitions feature a durable high-density aluminum frame, premium soundproofing materials, and specialized rubber seals for exceptional acoustic performance.

Key Features

Rubber seals around panel edges effectively block sound transmission
Suspended from aluminum track system with multi-directional wheels for smooth movement
Easy reconfiguration to adapt to changing space requirements

High-Quality Service Commitment

SGS and ILAC-MRA certified products ensuring reliable performance
German partition technology for global professional space solutions
Extended product lifespan with long-term performance stability
Quick follow-up and transparent quoting services
On-site inspection services for quality assurance
Punctual delivery to maintain project schedules

Unique Roller Options & Features

Dupont POM rollers for optimal performance
304 stainless steel construction with heavy-duty capabilities
Safety features and precision CNC machining
Patented wheel design for effortless operation

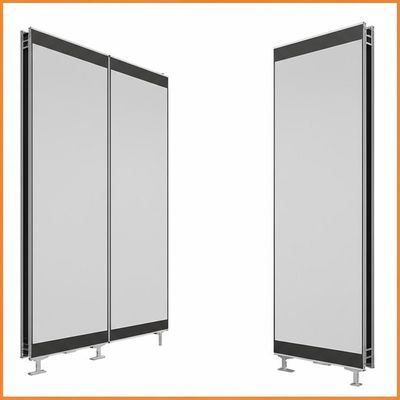

Panel Options & Features

100mm thickness for enhanced stability and sound insulation
Diverse range of acoustical and decorative finishes
Robust 6061-T6 profile with Q235 steel frame for durability
Top and bottom jack lifting mechanisms with 800N sealing power
Magnetic seal with concave and convex profiles (40N/m attraction)

Specification

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness (mm)	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB): 52/56
Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m
* Larger widths possible on application. Provisional details regarding the element heights/widths indicated can only be confirmed following consultation with the Design Department.
