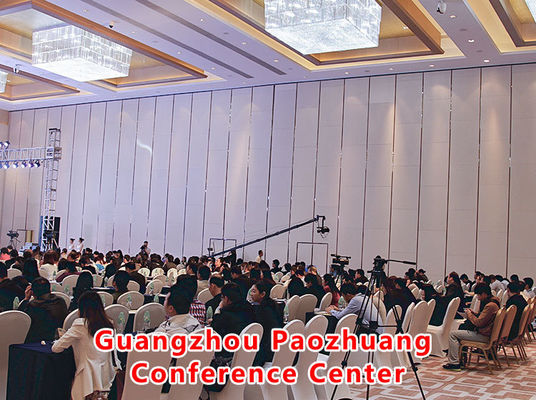

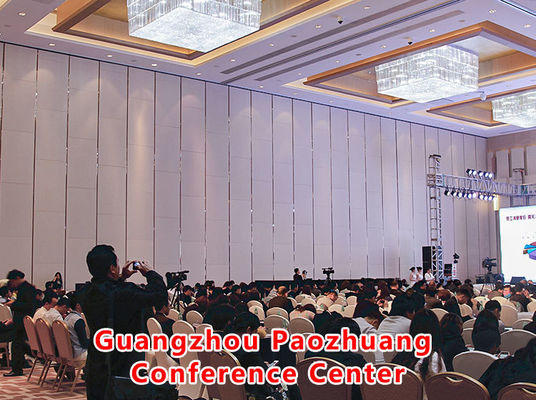

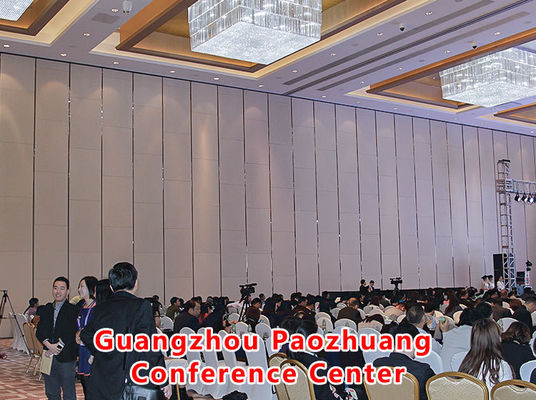

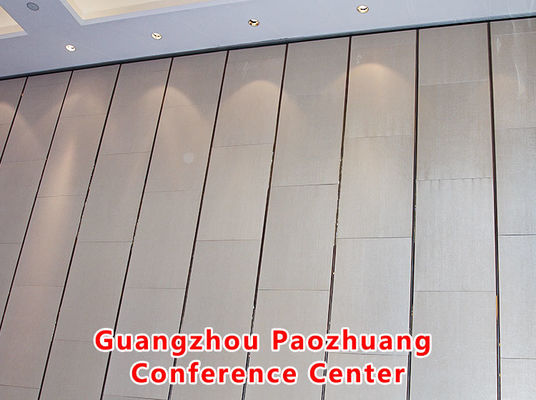

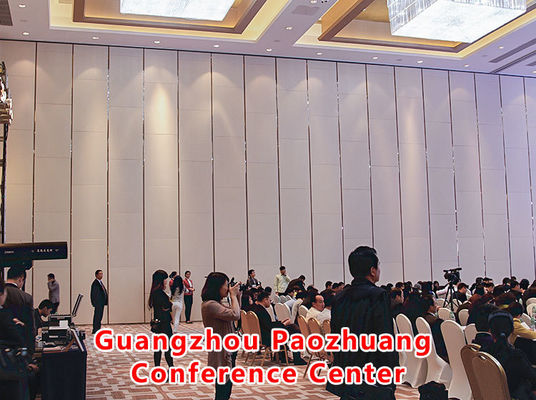

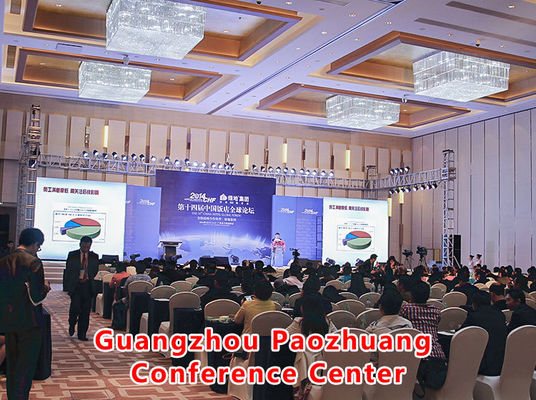

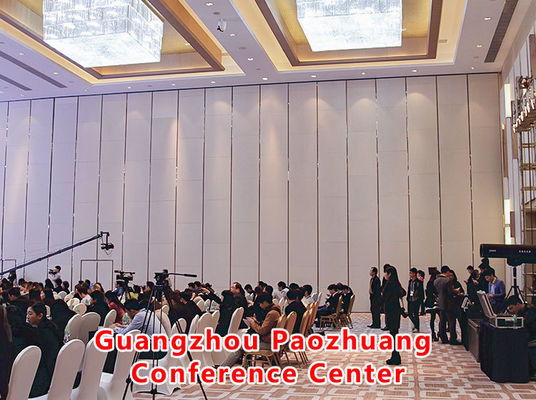

Guangzhou Pazhou Conference Center | Movable Folding Door Partition Wall with Up to 18M Height and 1.2M Width per Panel Featuring 800N Sealing Power

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD 90-135 Per Square Meter
Ketentuan Pembayaran:	L/C, D/A, D/P, T/T, Western Union, Moneygram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Cina

Sertifikasi:

ISO9001 SGS

Model:

Dinding Partisi Pintu Lipat

Opsi finishing:

Bahan yang disediakan pelanggan

Kepatuhan:

Aula perjamuan, Ruang konferensi

Ketebalan:

105cm

Peringkat STC:

42-56dB

Ukuran:

Kustomisasi (Tinggi: hingga 18M, Lebar per Panel: hingga 1,2M)

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

Up to 18M Height Movable Partition Wall

Up to 1.2M Width per Panel Folding Door Partition Wall

800N Sealing Power Vinyl Partition Wall

Deskripsi Produk

Movable Folding Door Partition Wall, Vinyl Partition Walls For Meeting Room

Our folding movable partitions provide cost-efficient, robust solutions for versatile space requirements. Also known as sliding walls or mobile walls, these adaptable systems are ideal for offices and commercial buildings, enabling quick reconfiguration to divide or open up spaces as needed.

High-Quality Service Commitment

SGS and ILAC-MRA certified products ensuring reliable performance
German partition technology for global professional space solutions
Extended product lifespan with stable long-term performance
Quick follow-up and transparent quoting services
On-site inspection services for quality assurance
Punctual delivery to maintain project schedules

Unique Roller Options & Features

Dupont POM rollers for optimal performance
304 stainless steel construction with heavy-duty capabilities and safety features
Patented wheel design for effortless operation

Panel Options & Features

100mm thickness for enhanced stability and sound insulation
Diverse range of acoustical and decorative finishes
Robust 6061-T6 profile with Q235 steel frame for exceptional durability
Top and bottom jack lifting mechanisms with 800N sealing power
Magnetic seal with concave/convex profiles (40N/m attraction) for secure closure

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness (mm)	Element width* (min/max mm)	Clear height* (min/max mm)	Framed construction	Panel fixing	Element interconnection
AE65	65	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	85	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology Specifications

Weighted sound reduction value (Rw dB): 52/56 (GB/T19889.3-2005)
Positive and frictional locking with convex-concave profile form
Magnetic strip attraction force: 40 N/m

* Larger widths possible on application. Provisional details regarding element heights/widths require confirmation from our Design Department.
