Movable Partition Wall with 800N Sealing Power and 40N/m Magnetic Attraction for Up to 4.5M Height

Nama merek:	AE
Nomor Model:	AE65
Moq:	10 meter persegi
harga:	USD 79-108 per square meter
Ketentuan Pembayaran:	T/T, L/C, Western Union
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS CANS

Produk:

Tembok Pembagian yang Bisa Dipindahkan

Papan dasar:

Bahan yang disediakan pelanggan

Kepatuhan:

Ruang pertemuan

Ketebalan:

68cm

Peringkat STC:

42-56dB

Ukuran:

Kustomisasi (Tinggi: hingga 4,5M, Lebar per Panel: hingga 1,2M)

Nama:

Tembok Pembagian yang Bisa Dipindahkan

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

800N Sealing Power Movable Partition Wall

40N/m Magnetic Attraction Movable Partition Wall

Up to 4.5M Height Movable Partition Wall

Deskripsi Produk

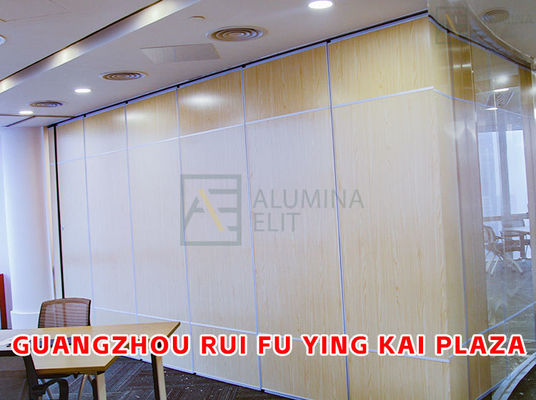

Movable Partition Walls for a Flexible Modern Office

With sound insulating operable partition walls you can divide larger spaces quickly into individual work areas, team spaces, meeting rooms, and educational environments without interruption.

Quality Service

Custom production following your design specifications
Quick turnaround on free quotes (1-6 business days depending on project size)
Comprehensive product specifications and value-engineered alternatives
Professional submittal drawings provided
Guaranteed on-time deliveries

Roller Options & Features

Dupont POM rollers for smooth operation
304 stainless steel heavy duty rollers with safety device & CNC machining
Patented wheel surface and shape design for effortless movement

Panel Options & Features

Available thicknesses: 68mm, 89mm, and 105mm
Wide selection of acoustical and decorative finishes
6061-T6 profile with internal Q235 steel frame for exceptional durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Technical Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Dimensions in mm*	Design Series	Element thickness	Element width* (min./max.)	Clear height* (min./max.)	Framed construction	Panel fixing
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology Specifications

Weighted sound reduction value: 52/56 dB (Rw) determined per GB/T19889.3-2005
Positive and frictional locking of vertical element connections
Convex-concave profile form with magnetic strip attraction force of 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.
