German Technology Exhibition Partition Walls with Manual Operation and MDF Material for Versatile Spaces

German Technology Exhibition Partition Walls with Manual Operation and MDF Material for Versatile Spaces

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD90-135Per Square Meter
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS

Model:

Dinding Partisi Pameran

Aplikasi:

Aula perjamuan, Ruang konferensi

Bahan:

MDF, rangka aluminium, kain

Ukuran:

Kustomisasi (Tinggi: hingga 18M, Lebar per Panel: hingga 1,2M)

Desain:

OEM & ODM

Isolasi suara:

Max 56db

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

German Technology Exhibition Partition Walls

Manual Operation Movable Partition Walls

MDF Material Acoustic Partition Walls

Deskripsi Produk

Sound Insulation Partition Walls Customized For Versatile Spaces

Premium Acoustic Movable Walls with German Technology

Discover the perfect fusion of superior sound insulation and elegant design with our expertly engineered movable partition walls. Ideal for exhibition halls, hotels, and conference centers, our system offers unparalleled flexibility. The user-friendly manual operation allows for effortless space reconfiguration, while the robust top and bottom seals ensure exceptional acoustic privacy.

Comprehensive OEM/ODM services available
Competitive pricing with advanced solutions
Dupont POM rollers for smooth operation
Heavy-duty stainless steel hardware

Specifications

German Partition Technology Global Professional Space Solutions

Series	Element thickness (mm)	Element width* (min/max mm)	Clear height* (min/max mm)	Framed construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56
Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

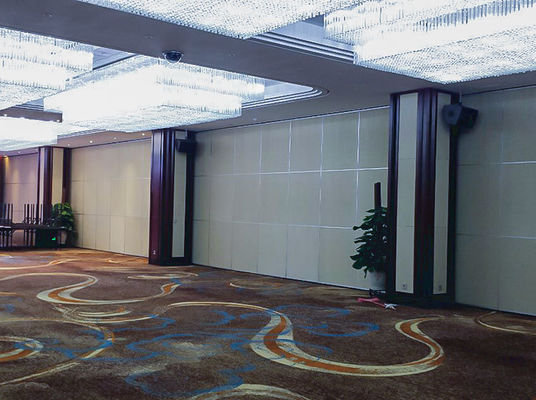

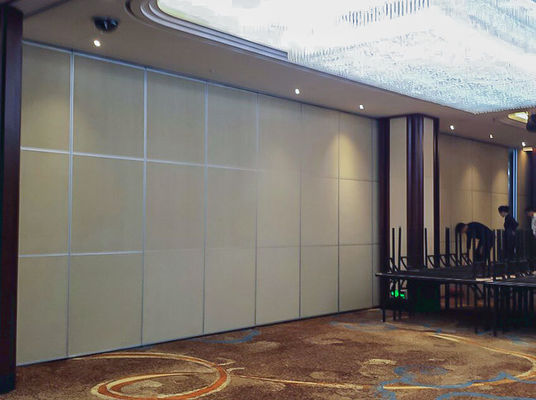

Project Gallery

About Our Manufacturing
