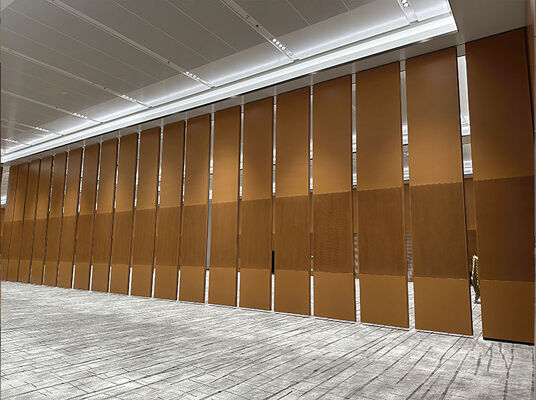

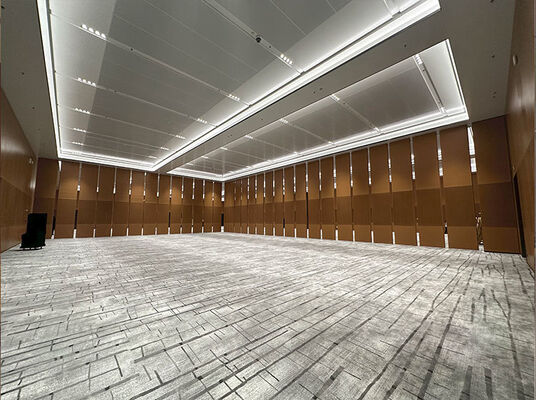

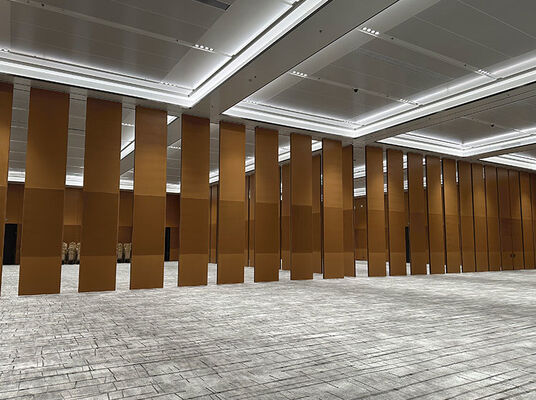

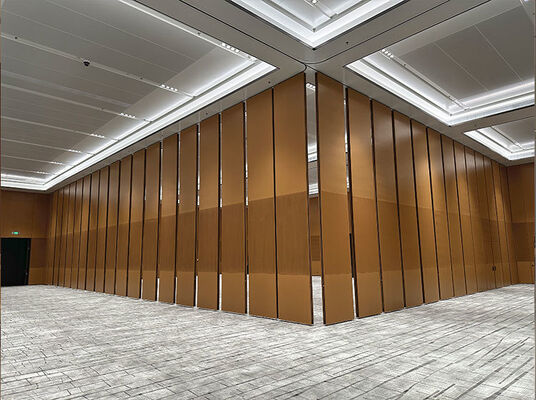

Customizable Soundproof Exhibition Partition Walls with 304 Stainless Steel Rollers and 6061-T6 Profiles

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD90-135Per Square Meter
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS

Seri:

Partisi kantor kedap suara

Kepatuhan:

Pusat konvensi, Gedung perkantoran

Opsi finishing:

Papan laminasi tekanan tinggi

Ukuran:

Kustomisasi (Tinggi: hingga 18M, Lebar per Panel: hingga 1,2M)

Desain:

OEM & ODM

Isolasi suara:

Max 56db

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

304 Stainless Steel Rollers Exhibition Partition Walls

6061-T6 Profiles Exhibition Partition Walls

Q235 Steel Frame Exhibition Partition Walls

Deskripsi Produk

Customizable Soundproof Exhibition Partition Walls

Our soundproof temporary partition walls feature robust 105mm thick panels designed to provide exceptional acoustic insulation, making them ideal for exhibitions and event spaces. These walls create a tranquil environment by effectively minimizing noise transfer, ensuring that each area maintains its intended atmosphere. Lightweight yet durable, our partition walls are easy to install and dismantle, allowing for quick reconfiguration of spaces without sacrificing performance or comfort.

As a leading producer of operable partitions, we design, manufacture, and continuously expand our portfolio including operable partitions and operable glass walls. Our 13,000 sq. ft production facility in Foshan, Guangdong has an annual production capacity of 40,000 sq.m, serving markets in Asia, Europe, the Middle East, and the US.

Our Advantages

Well-trained, experienced staff fluent in English
Custom production following your design specifications
German Partition Technology - Global Professional Space Solutions
Highly competitive pricing
Stringent quality control
Efficient communication
State-of-the-art technology products

Roller Options & Features

Dupont POM Rollers: Engineered for superior performance and durability
304 Stainless Steel Heavy-Duty Rollers: Equipped with safety devices and precision CNC machining for reliable functionality
Patented Wheel Design: Unique surface and shape ensure smooth operation of the movable partition system

Panel Options & Features

Thickness Options: 68mm, 89mm, and 105mm for various acoustic and structural needs
Variety of Finishes: Wide selection of acoustical and decorative finishes
Durable Construction: 6061-T6 profiles with internal Q235 steel frame
Advanced Sealing: Top/bottom jack lifting mechanism (800N force) with magnetic seals (40N/m attraction)

Specifications

Series	Element thickness (mm)	Element width (min/max)	Clear height (min/max)	Construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value (Rw dB): 52/56 (GB/T19889.3-2005)
Element connections: Convex-concave profile form with 40 N/m magnetic attraction
* Larger widths available upon request. Final dimensions subject to Design Department confirmation.
