Acoustic Sliding Partition Wall with 56dB Sound Insulation for Banquet Halls and Conference Rooms

Acoustic Sliding Partition Wall with 56dB Sound Insulation for Banquet Halls and Conference Rooms

Nama merek:	AE
Nomor Model:	AE100
Moq:	10 meter persegi
harga:	USD90-135Per Square Meter
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS

Model:

Dinding Partisi Pameran

Aplikasi:

Aula perjamuan, Ruang konferensi

Bahan:

MDF, rangka aluminium, kain

Ukuran:

Kustomisasi (Tinggi: hingga 18M, Lebar per Panel: hingga 1,2M)

Desain:

OEM & ODM

Isolasi suara:

Max 56db

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

56dB Sound Insulation Sliding Partition Wall

Banquet Hall Sliding Partition Wall

Conference Room Sliding Partition Wall

Deskripsi Produk

Flexi Walls Sliding Partition Wall System Foldable

Solve Your Space Division Challenges with Acoustic Movable Walls

Struggling with inflexible layouts and noise bleed in your venue? Our acoustic movable partition walls provide the definitive solution. We create versatile, sound-insulated zones perfect for multi-function halls and hotels. Our manually operated system is designed for rapid adaptation, allowing you to host multiple events simultaneously in complete privacy. With our extensive project experience and ability to provide cost-effective alternatives, we solve your space and budget challenges without compromising on quality or performance.

Specifications

GEMMAN PARTITION TECHNOLOGY GLOBAL PROFESSIONAL SPACE SOLUTIONS

Series	Element thickness (mm)	Element width* (min./max. mm)	Clear height* (min./max. mm)	Framed construction	Panel fixing	Element interconnection/design of the vertical profiles
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56

Positive and frictional locking: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m

* Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

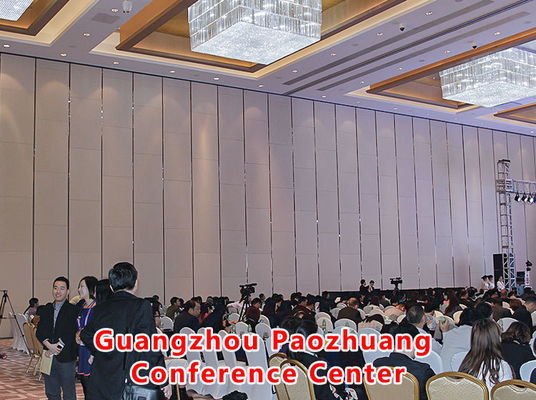

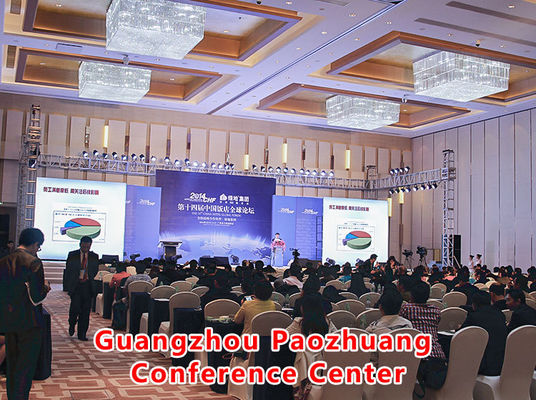

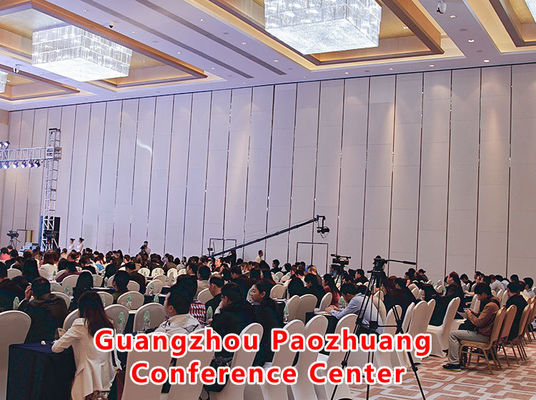

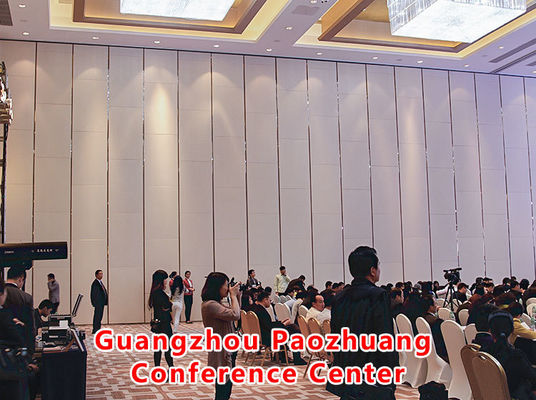

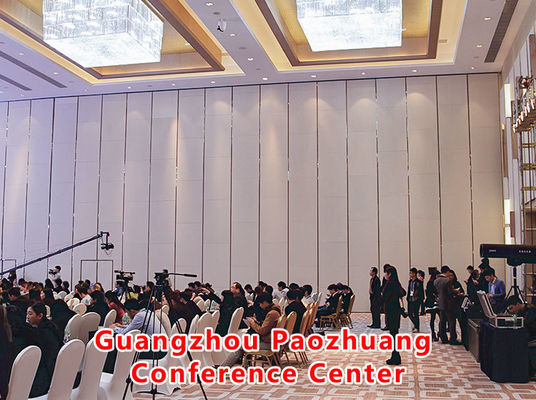

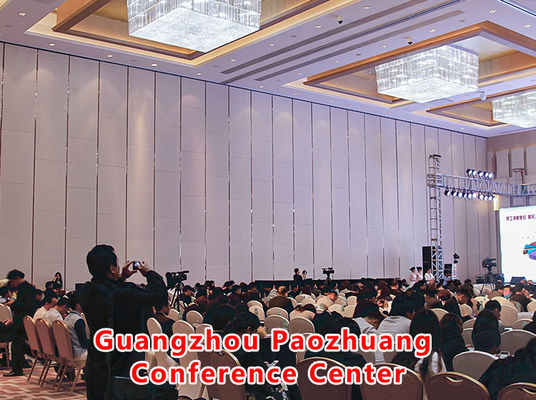

Project Gallery
