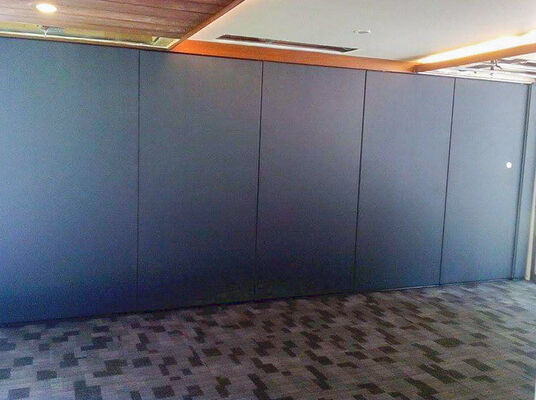

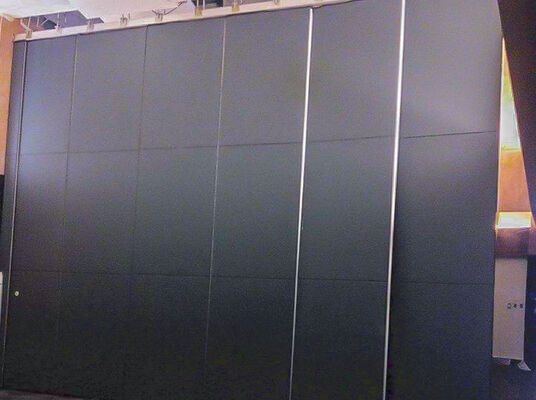

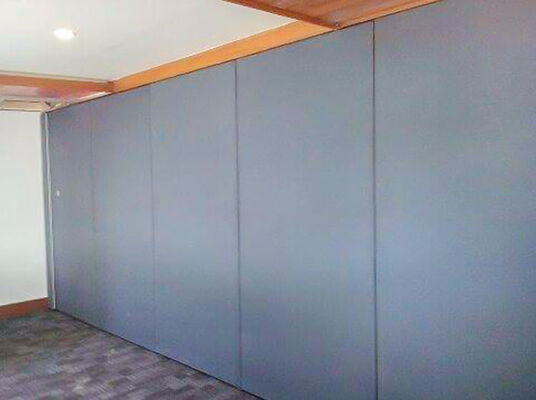

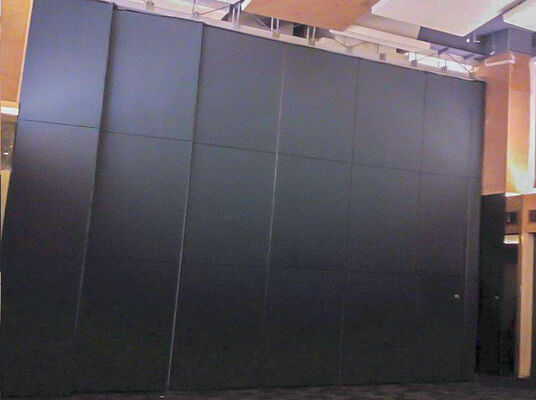

Acoustic Movable Partition Wall with STC Rating 42-56dB and 105CM Thickness for Conference Rooms

Nama merek:	AE
Nomor Model:	Seri 100
Moq:	10 meter persegi
harga:	USD 90-135 per square meter
Ketentuan Pembayaran:	L/C,T/T,Western Union
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS CANS

Model:

Tembok Pembagian yang Bisa Dipindahkan

Papan dasar:

Bahan yang disediakan pelanggan

Aplikasi:

Aula perjamuan, Ruang konferensi

Ketebalan:

105cm

Peringkat STC:

42-56dB

Ukuran:

Kustomisasi (Tinggi: hingga 12M, Lebar per Panel: hingga 1,2M)

Nama:

Tembok Pembagian yang Bisa Dipindahkan

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

STC Rating 42-56dB Movable Partition Wall

105CM Thickness Movable Partition Wall

Customizable Dimensions Movable Partition Wall

Deskripsi Produk

Acoustic Conference Room Movable Partition Wall with Passageway Door

Intelligent solutions for flexible space utilization. Our sound-insulated or transparent movable partition walls enable efficient space configuration for virtually any application.

Key Advantages

Extensive experience with demanding commercial projects
Reliable delivery time management for large orders
Dedicated R&D team for custom product development
SGS & ILAC-MRA certified product performance
24-hour response to all product and pricing inquiries
Fluent English-speaking support staff
Custom manufacturing to your specifications

Roller System Features

Dupont POM rollers for smooth operation
304 stainless steel heavy-duty rollers with safety mechanisms
Patented wheel design for effortless partition movement

Technical Specifications

Series	Element Thickness (mm)	Element Width (mm)*	Clear Height (mm)*	Construction	Panel Fixing	Vertical Profile Design
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Magnetic strip with sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Magnetic strip with sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Magnetic strip with sealing lips

* Larger dimensions available upon request. Final specifications subject to engineering review.
** Sound insulation performance: Weighted sound reduction value (Rw) 52-56 dB (GB/T19889.3-2005)
*** Vertical connection system: Convex-concave profile with 40 N/m magnetic attraction force
