Custom Dimensions Aluminum Movable Partition Wall with Dupont POM Roller and Magnetic Seal

Nama merek:	AE
Nomor Model:	AE65
Moq:	10 meter persegi
harga:	USD 70-98Per Square Meter
Ketentuan Pembayaran:	L/C,D/A,D/P,T/T,Western Union,MoneyGram
Kemampuan Penyediaan:	1000 meter persegi per bulan

Informasi Rinci

Deskripsi Produk

Informasi Rinci

Tempat asal:

Guangdong, Tiongkok

Sertifikasi:

ISO9001 SGS

Produk:

Sistem Dinding Partisi yang Dapat Dioperasikan

Kepatuhan:

Restoran, gedung perkantoran

Opsi finishing:

Papan MDF 68mm

Ukuran:

Kustomisasi (Tinggi: hingga 4,5M, Lebar per Panel: hingga 1,2M)

Desain:

OEM & ODM

Peringkat STC:

42-56dB

Kemasan rincian:

Lapisan busa dan kardus keras dengan kotak kayu lapis atau palet baja

Menyoroti:

Custom Dimensions Movable Partition Wall

Dupont POM Roller Operable Partition Wall

Magnetic Seal Folding Partition Wall

Deskripsi Produk

Acoustic Wooden Operable Partition Wall System for Event Management

AE Partition offers intelligent room management solutions to customers across the globe. We don't just install movable partition wall systems; we meticulously plan and design them to meet the specific needs of each space. Our dedication to quality extends to our post-installation services, which are designed to maintain the durability and functionality of our products over time.

Key Advantages

German Partition Technology Global Professional Space Solutions
Highly competitive prices
Rigorous quality control
Efficient communication
State-of-the-art technology products
Extensive experience with large-scale projects
Reliable delivery time management

Roller Features

Dupont POM roller
304 stainless steel heavy duty roller with safety device & CNC machining
Patented wheel surface and shape design for easy operation

Panel Features

Available thicknesses: 68mm, 89mm & 105mm
Wide variety of acoustical and decorative finishes
6061-T6 profile with Q235 steel frame for superior durability
Top & bottom jack lifting mechanism seal with 800N power
Magnetic seal in concave & convex profile with 40N/m magnetic attraction

Technical Specifications

Series	Element thickness (mm)	Element width (min/max)	Clear height (min/max)	Construction	Panel fixing	Element interconnection
AE65	68	600/1,250	2,000/4,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE85	89	600/1,250	2,000/5,500	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips
AE100	105	600/1,250	2,000/18,000	Aluminium-steel	Freely oscillating	Aluminium profile with magnetic strip and sealing lips

Technology Notes: Weighted sound reduction value determined per GB/T19889.3-2005 in Rw (dB):52/56. Positive and frictional locking of the vertical element connections: Convex-concave profile form, force of attraction of the magnetic strip 40 N/m. Larger widths possible on application. Provisional details regarding the element heights/element widths indicated can only be confirmed following consultation with the Design Department.

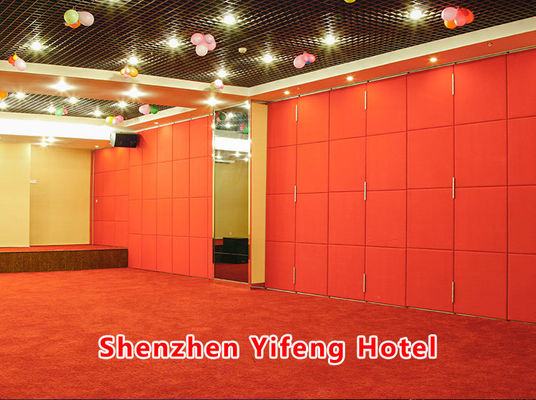

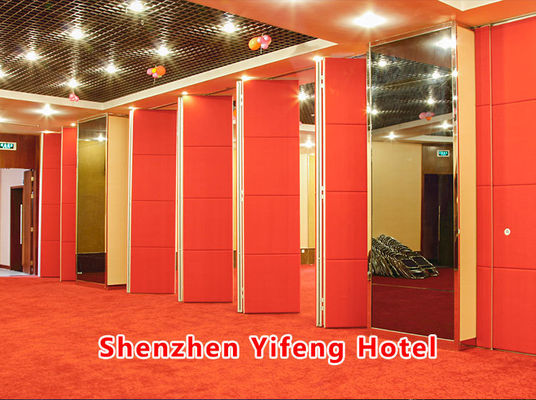

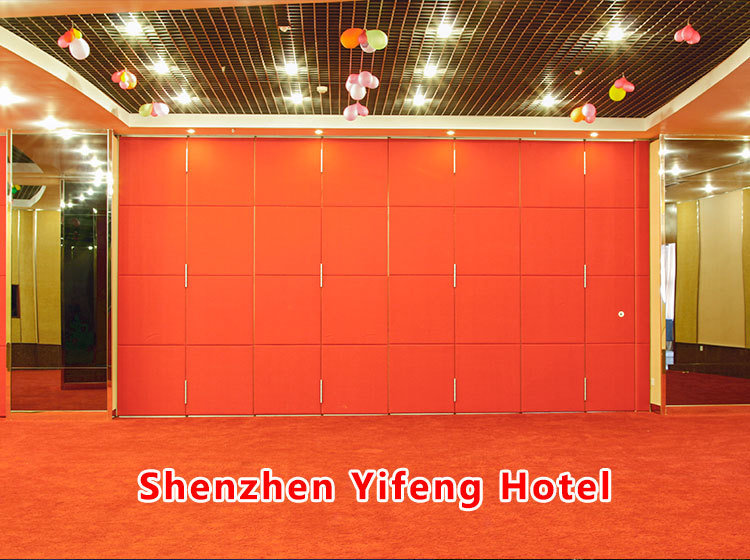

Project Gallery

About Our Company
